Should I Use Compound Or Absolute Pressure Gauges?

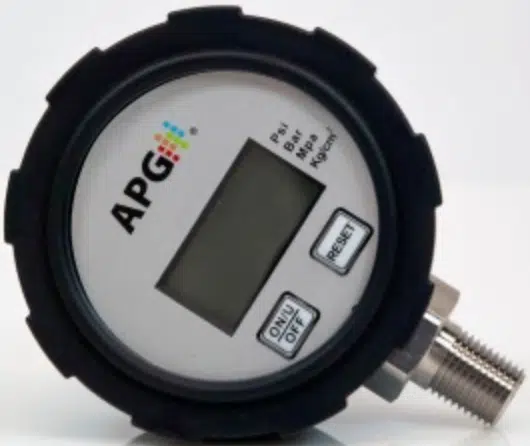

A digital absolute pressure gauge on the discharge nozzle of a pumpWhen you need to measure a vacuum, you may instantly think of a compound pressure gauge. After all, that’s what they’re designed for. However, you might want to take a look at absolute gauges. The differences between the two are fairly subtle, but important. Let’s take a look.

Reference Points

The major difference between compound and absolute pressure gauges is the reference point – what the gauge uses as zero. An absolute pressure gauge uses a full vacuum as zero. When the unit is sealed, it’s done under a full vacuum. Therefore, all of its measurements are positive.

With compound pressure, the zero reference point is atmospheric pressure, which is ~15 psi at sea level. The reference chamber is never sealed, but is vented to atmosphere. The diaphragm on a compound unit will measure vacuum pressure, which will read as a negative psi on a digital gauge, or often in inches of mercury (inHg) on an analog gauge.

So 7.5 psi on an absolute pressure gauge would read -7.5 psi on a compound gauge at sea level. At the end of the day, this is the biggest difference between the two types of pressure measurements.

It’s merely a different way of accomplishing the same task.

Vacuum Sealed vs Vented

There are consequences for sealing at vacuum or leaving a gauge vented. Namely, sealing at vacuum means that your measurement will include atmospheric pressure, which is affected by the weather. A vented instrument automatically cancels out pressure changes due to weather. Both have their pros and cons.

In a closed system, there is real merit to using absolute pressure gauges and transmitters. Most pressurized systems have pumps, and pump calculations are based off of absolute measurements. This is a good reason to standardize on absolute pressure across the board.

Another benefit of absolute pressure gauges is that they are sealed. There is no vent to act as a penetration point for dust and moisture.

But remember, what looks like a zero pressure reading is actually closer to 15 psi (or 12 psi if you’re at high elevation). Therefore, your instruments will show pressure, even when your vessel or line has been fully depressurized. For the same reason, you cannot “zero” an absolute pressure gauge – unless you’re in a full vacuum chamber.

Compound pressure automatically compensates for changes in atmospheric pressure because it uses the current atmospheric pressure as its zero point. This means the zero point will change slightly as weather patterns affect the atmospheric pressure. This does not bother most people, but it’s worth understanding.

The biggest problem with compound pressure gauges is that you must convert a negative pressure to a positive absolute value for head and flow calculations in processes that use pumps. If you’re not monitoring your pumps, filters, and valves, that’s a separate issue altogether and you should give us a call to talk about it.

When To Use

It’s difficult to recommend one type over the other as they both accomplish the same task – a way to measure both positive and vacuum pressure. However, as most people are more familiar with compound pressure gauges, you will likely want to keep to a standard.

But, if you’re in a closed system with pumps, using absolute pressure gauges is definitely a good idea – at least on the suction and discharge of the pumps. It’s also a good idea to use absolute gauges when you’re in particularly wet or dirty environments, because the sensing elements and electronics are fully sealed.

So think about it! Next time you purchase pressure gauges or transmitters for vacuum measurements, reconsider your assumptions and ask if absolute pressure is a better choice for you.

Let us know if you have any questions about pressure gauges, transmitters, or the various reference points. Our Measurement Experts are happy to help!


Need answers to your toughest pressure gauge problems? You just found them! Check out our reliable digital pressure gauges below:
