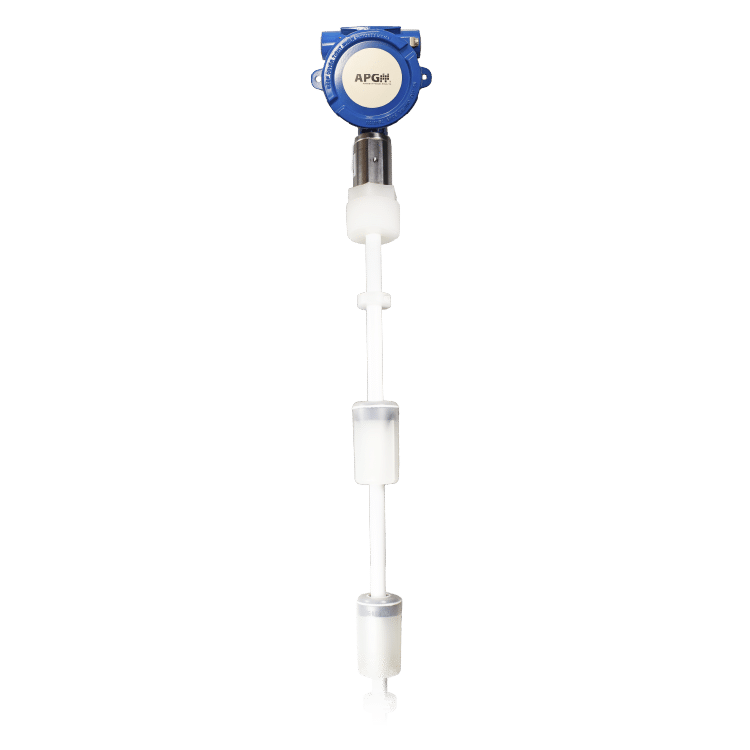

Intrinsically Safe, Chemically Resistant Magnetostrictive Float Level Transmitter
Tim Olson
Wed, 05/22/2019 - 16:19
With a coating to keep the probe safe in corrosive liquids, and Intrinsic Safety ratings to keep your job site safe, the MPI-E Chemical is perfect for small-scale measurements in big-time nasty environments.
The MPI-E Chemical excels in small tank, corrosive or acidic level-measurement conditions.
Durable
The coating on the MPI-E Chemical is designed for use in corrosive, acidic, and marine environments. It can withstand sulfuric acid, boric acid, hydrochloric acid, and sodium hydroxide.
Modbus Output
The RS-485 Modbus RTU output makes any MPI compatible with any Modbus controller. It also pairs with the MDI controller to create a self-contained, Intrinsically Safe level monitoring solution.
Tank Cloud Compatible
The MPI liquid level sensor is a Tank Cloud client sensor, able to communicate via the Internet with the addition of an LOE Master sensor or an RST-5003 module.
Performance
Accuracy
Greater of ±0.04 in. (±1mm) or 0.05% of full range
Resolution
Modbus: ±0.04 in. (±1mm)
Electrical
Supply Voltage
8-24 VDC
Typical Current Draw
Modbus (RS-485): 24 mA
Approvals
CSA
Certificate: CSA19CA70219727
Ambient: -40° to 85°C
Class I Division 1, Groups C D T4
Class I, Zone 0; AEx ia IIB T4 Ga
Ex ia IIB T4 Ga
ATEX
Certificate: Sira 18ATEX2072X
II 1G Ex ia IIB T4 Ga
Ta = -40° to 85°C
IECEx
Certificate: IECEx SIR 19.0026X
Ex ia IIB T4 Ga
Ta = -40° to 85°C
Connectivity
Output
Modbus RTU (RS-485) with Surge Protection
Internet Connectivity
Tank Cloud LOE Master
RST-5003
Programming
RS-485
Optional RST-6001 USB to RS-485 converter
MND/MDI Modbus controller
Physical
Housing
Cast aluminum, epoxy coated
Stem
.67" Ø PVDF (rigid)
Stem Length
1 - 12.75 ft. (0.3 - 3.9 m)
Float Materials
Kynar
Environmental
Operating Temperature
-40° to 185° F (-40° to 85° C)
Maximum Operating Pressure
30 PSIA @ 70°F / 21°C
Protection Rating
NEMA 4X
IP65
