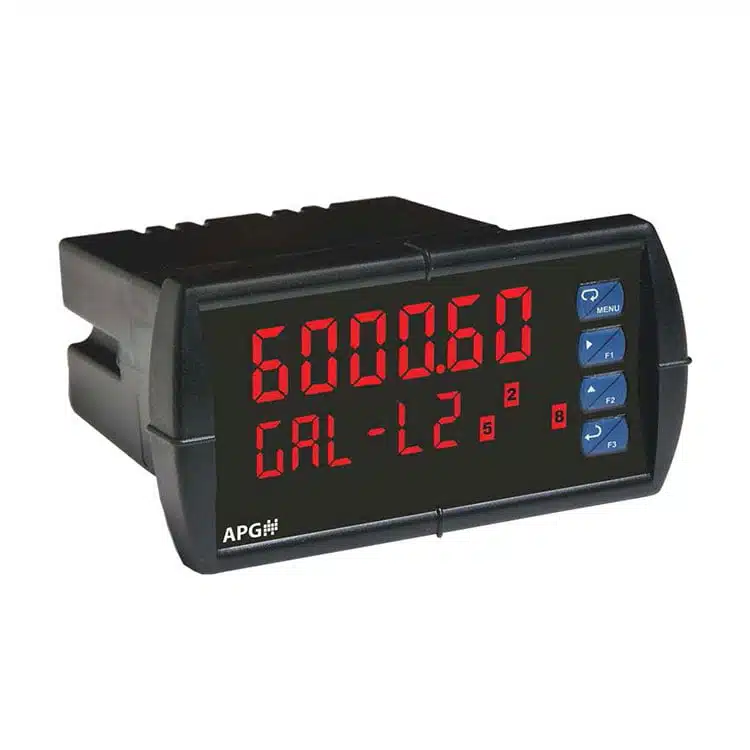

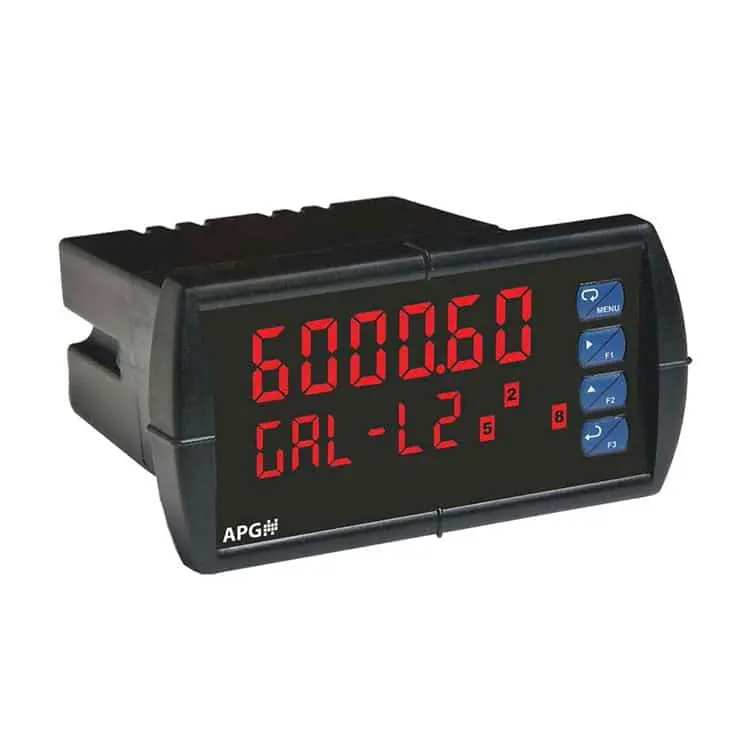

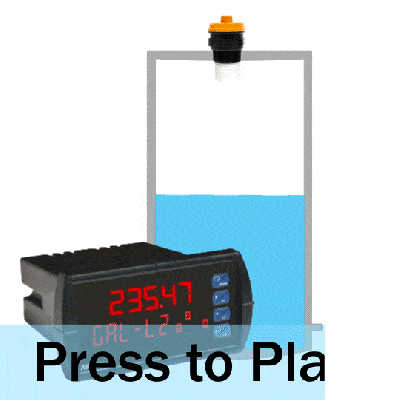

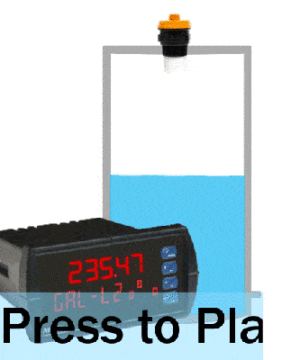

Din Mounted Digital Panel Meter

DDD

A Lot of Information in a Small Space

Two configurable, six-character lines, eight LED alarm indicators, and four push buttons, on a display that is smaller than 5" x 2.5".

Easy to Program
With four push buttons on the face for programming in place, and a USB port for connection to a PC running MeterView Pro software, setting up the DDD is simple.

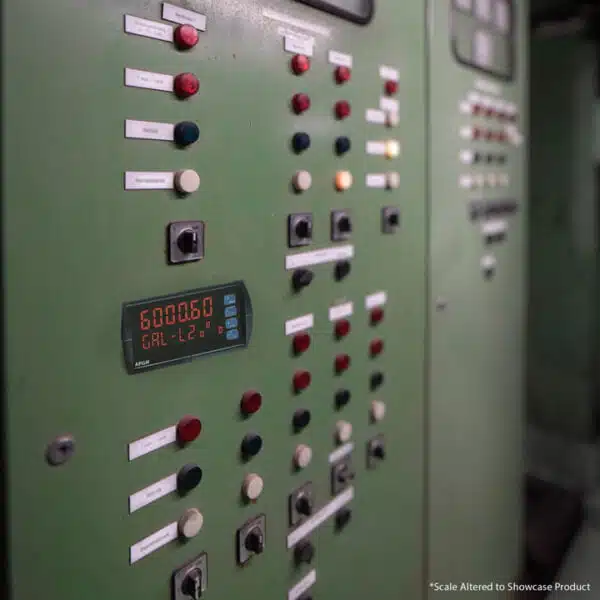

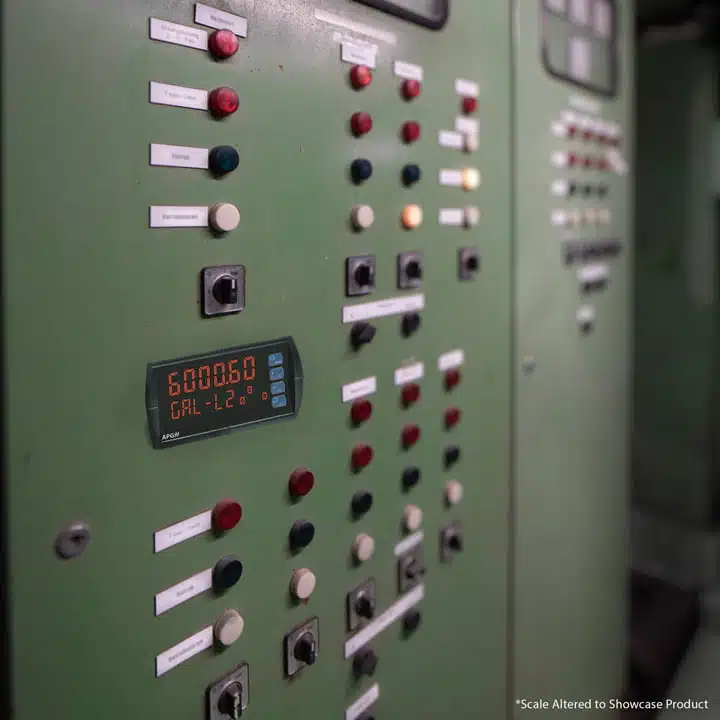

Strong Face in a Durable Panel
The front face of the DDD is rated NEMA 4X, IP 65, so proper installation in a suitable panel will lead to long lasting, dependable read outs.

Accuracy
The DDD is accurate to ±0.03% of calibrated span, giving you a precision display of your analog sensor's output.

COMMON MODEL CONFIGURATIONS

All common model configurations can be purchased online, click the model number link below. Refer to Model Number Configurator on the datasheet for a full list of configuration options.

DIN MOUNT DIGITAL PANEL METER

Model Number Model Description
DDD-A00 85-265 VAC input power, No outputs (visual display only)
DDD-D02 12-24 VDC input power, 2 output relays
DDD-D14 12-24 VDC input power, 4-20 mA & 4 output relays

DIN MOUNT BRIGHT DIGITAL PANEL METER

Model Number Model Description
DBD-D14 12-24 VDC input power, 4-20 mA & 4 output relays
Performance

Display
2 lines, 6 characters each
Top line: 0.6" (15 mm) characters
Bottom line: 0.46" (12 mm) characters
Optional Sunlight Readable Bright Display (model DBD)
Display Update Speed
200 ms (5 updates per second)
Accuracy
± 0.03% of calibrated span

Physical

Size
4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm)
Weight
9.5 oz (269 g)

Electrical

Supply Voltage
VAC: 85 - 265
VDC: 12 - 24
Input Impedence
Voltage Inputs: > 500 kΩ
Current Inputs: 50 - 100 Ω
SPDT Relays
3 A @ 30 VDC / 125/250 VAC resistive loads
1/14 HP (≈ 50 W) @ 125/250 VAC resistive loads
Input Contact/Digital Input
Contact Voltage: 3.3 VDC
Digital Input Logic High: 3 - 5 VDC
Digital Input Logic Low: 0 - 1.25 VDC
Default Logic: Normally Open/Low

Environmental

Front panel rating
NEMA 4X, IP65
Storage Temperature
-40° - 185°F (-40° - 85°C)
Operating Temperature
-40° - 149° F (-40° - 65°C)

Approvals

CE
UL/C-UL Listed

Connectivity

Input Options
0-20 mA, 4-20 mA
0-5 VDC, 1-5 VDC, 0-10 VDC, ± 10 VDC
Output Options
2 or 4 SPDT Relays
Isolated 4-20 mA
Output Transmitter Power Supply
Isolated 24 VDC @ 40 mA
Sensor Power Supply
24/10/5 VDC selectable
200 mA for VAC models
100 mA for VDC models
