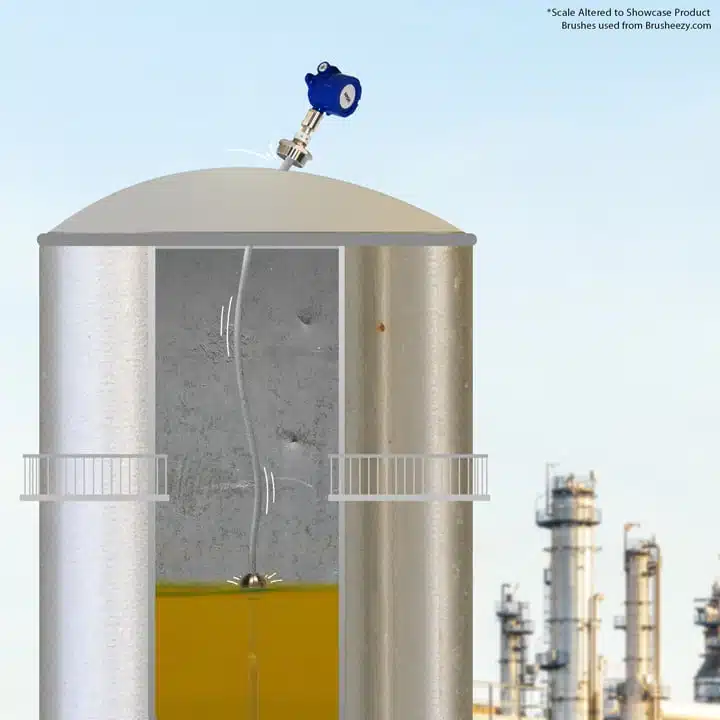

The MPX-F features a 316L SS flexible tubing braided stem that uncoils easily for simple installation in tall tanks.
The MPX-F does almost everything you expect from an MPX, but with more flexibility. Its 316L SS flexible tubing with braided stem simplifies installation in tall tanks.
The RS-485 Modbus RTU output makes the MPX compatible with any Modbus controller or PLC. It also simplifies wiring dramatically.
The MPX liquid level sensor is a Tank Cloud slave sensor, able to communicate via the Internet with the addition of an LOE Master sensor or an RST-5003 module. Flexible
The MPX-F is designed with ease of use in mind. The 316 SS flexible tubing stem coils for compact shipping, and with the stem weight attached, uncoils easily into your tank, so you no longer need an 40-foot crane to install a 20-foot probe in a 20-foot tank.
Accuracy
Greater of ±0.04 in. (±1mm) or 0.05% of full range
Resolution
Modbus: ±0.04 in. (±1mm)
4-20 mA: 14 bit DAC
Housing
Cast aluminum, epoxy coated
Stem
7/8” ø Flexible Tubing with Braid, 316L SS
Stem Length
10 - 32 ft. (3.05 - 9.75 m)
Supply Voltage
12-24 VDC
Maximum Current Draw
Modbus: 28 mA
4-20 mA Single: 22 mA
4-20 mA Dual: 44 mA
Operating Temperature
-40° to 185° F (-40° to 85° C)
Protection Rating
NEMA 4X
IP65
Certifications
Class I Division 2 Groups C & D T4 (Ta 85°C)
Class I, Zone 2; AEx nA IIB T4
Ex nA IIB T4
Outputs
4-20 mA (Loop-powered 2 wire)
Dual 4-20 mA (Loop-powered 3 wire)
Modbus RTU (RS-485) with Temperature Output
Internet Connectivity
Tank Cloud LOE
RST-5003 Master
