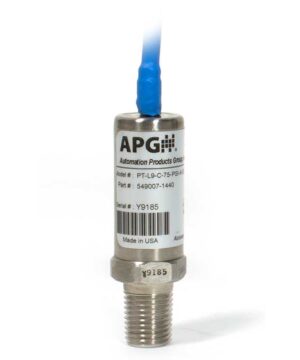

PT-L9 Pressure Transmitters
PT-L9
PT-L9
PT-L9

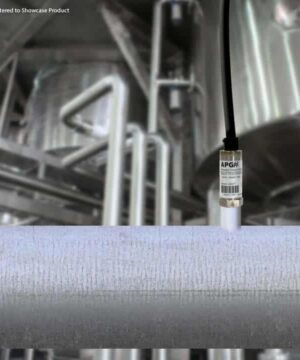

PT-L9 Illustration

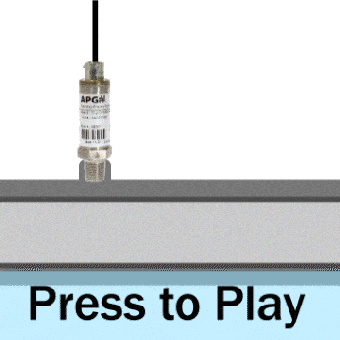

PT-L9 Animation
PT-L9 Pressure Transmitters
PT-L9
PT-L9
PT-L9

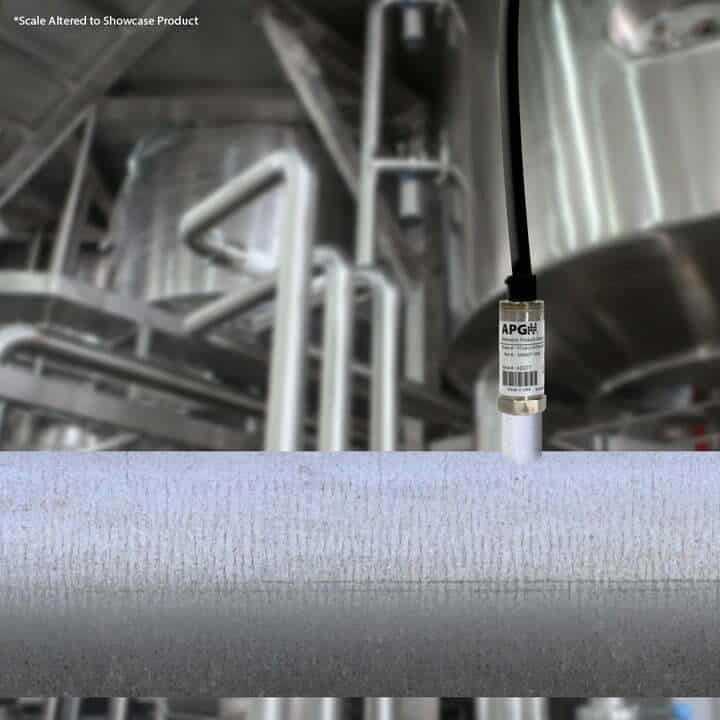

PT-L9 Illustration

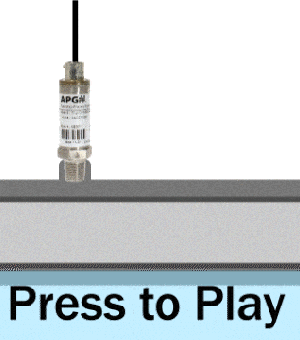

PT-L9 Animation

Industrial Pressure Transmitters with Millivolt Output

PT-L9/L13/L14

Super Compact, Millivolt Output

The PT-L9/L13/L14 Industrial Pressure Transducer is a super compact, low-cost millivolt output pressure sensor designed for space-constrained applications. With an unamplified mV/V output, these pressure transmitters provide high accuracy and durability for a wide range of industrial environments. Available in pressure ranges up to 10,000 psi, they are constructed with 15-5, 17-4, or 316L stainless steel for superior chemical resistance and mechanical durability.

  • Compact Design: Fits into tight spaces
  • Millivolt Output: Unamplified mV/V signal for direct measurement
  • Low Cost: Simplified design reduces overall cost
  • High Accuracy: BFSL ≤ 0.25% of full scale, NIST options available
  • Durable Stainless-Steel Construction: 15-5, 17-4, or 316L SS for corrosion resistance
  • Wide Temperature Range: Operates with largest range option from -40°F to 250°F (-40°C to 121°C)

CUSTOMIZE YOUR SOLUTION

Indicates required field

Skip Configuration
SKUTITLE
Product Title
CONFIGURED MODEL NUMBER:
Select an option to begin configuring.
Other ranges available. Please consult factory.
Product total
Options total
Grand total
ⓘ
  • Accuracy:
    • B.F.S.L. ≤ 0.25% of full scale
    • NIST up to ±0.1% available on select ranges
  • Temp Compensation Range: (Standard)
    • Up to 0º – 130ºF (-17º – 54ºC)
  • Extended Temp Compensation Range: (Optional)
    • Up to -40º – 250ºF (-40º – 121ºC)
    • No Temperature Specification for ≤ 5 psi
  • Supply Voltage: All Models calibrated for 10VDC input
  • Electrical Protection: Reverse polarity
  • Field Calibration: No field adjustments available
  • Output:
    • L9: 10 mV/V ±2%
    • L13: 3 mV/V ±2%
    • L14: 5 mV/V ±2%

Material: 15-5, 17-4, or 316L SS

What materials are used in the construction of the PT-L9/L13/L14?

These models are built with durable 15-5, 17-4, or 316L stainless steel, providing excellent chemical resistance and long-lasting performance.

Yes, they are designed to operate in temperature ranges from -40°F to 250°F (-40°C to 121°C) in the largest range option, making them suitable for harsh environments.

The PT-L9/L13/L14 models feature an un-amplified mV/V output, which is simple and reliable for various applications.

These pressure transducers have a super compact design, making them ideal for tight spaces with no need for electronics programming.

Yes, the 15-5, 17-4, and 316L stainless steel construction provides excellent chemical compatibility, making them ideal for harsh chemical environments.

We recommend recalibration to be performed at least once a year to ensure accurate measurements—although some applications may require more frequent calibration. APG offers in-house NIST calibration services, with experienced technicians and quick turnaround times to help keep your operations on track.



You can start the recalibration process by submitting our RMA form, and set custom recalibration reminders through our Recalibration Reminder form.

OUTPUT

mV/V
PRESSURE

0-10,000 psi, 0-7,500 psi
INDUSTRY

Chemical, Industrial Automation, Water & Wastewater
MATERIAL

15-5 SS, 17-4 SS, 316L SS

WARRANTY

APG warrants its products to be free from defects in material and workmanship under normal use and service of the product for 24 months from the date of shipment from APG, unless otherwise specified by APG in writing. Read our full warranty policy HERE.

RETURNS

Returns and allowances must be authorized by APG in advance, which authorization may be granted or withheld by APG in APG’s sole and absolute discretion. Read our full return policy HERE.
