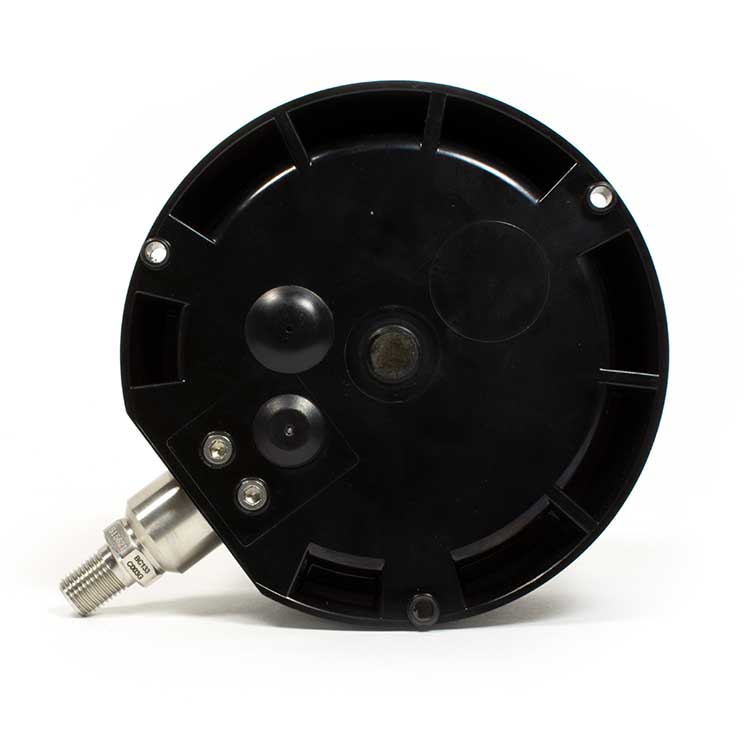

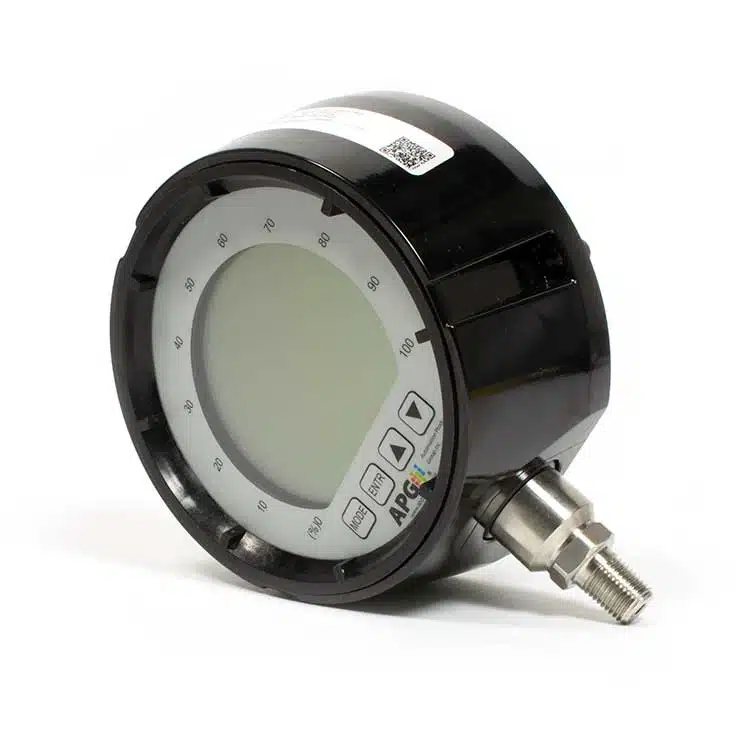

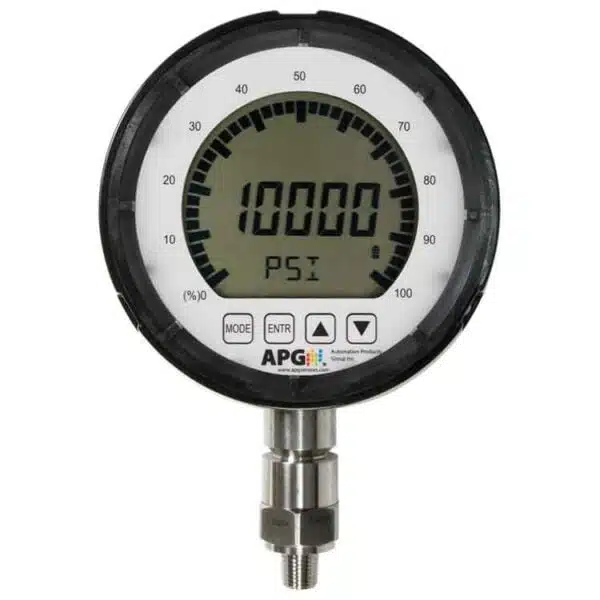

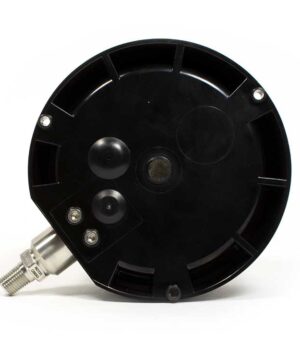

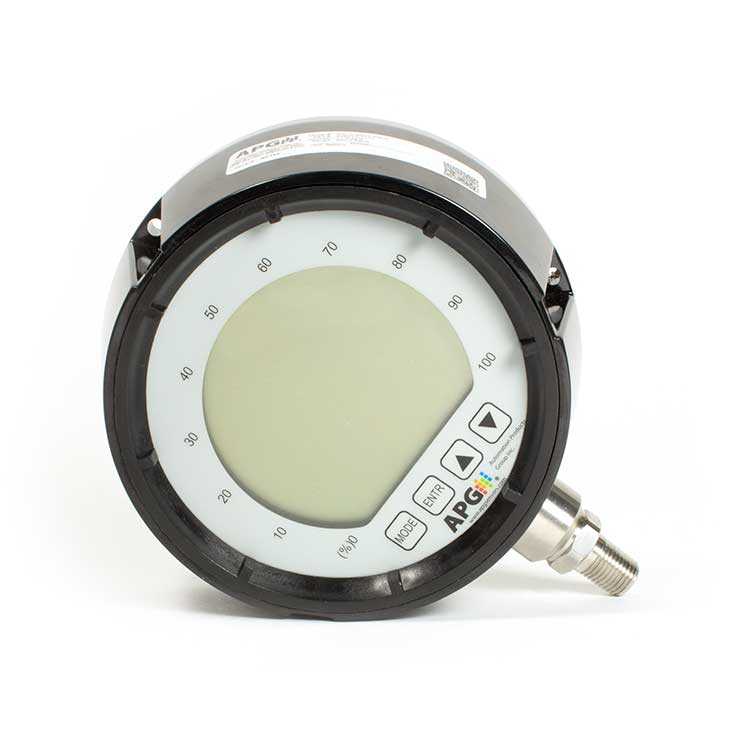

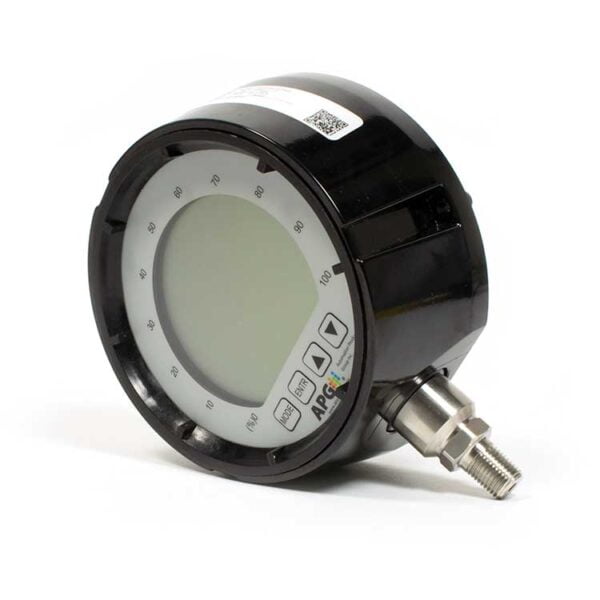

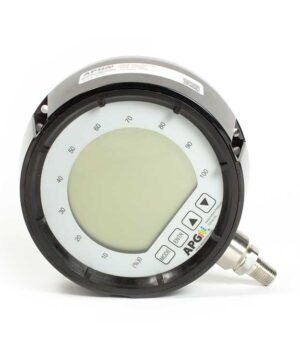

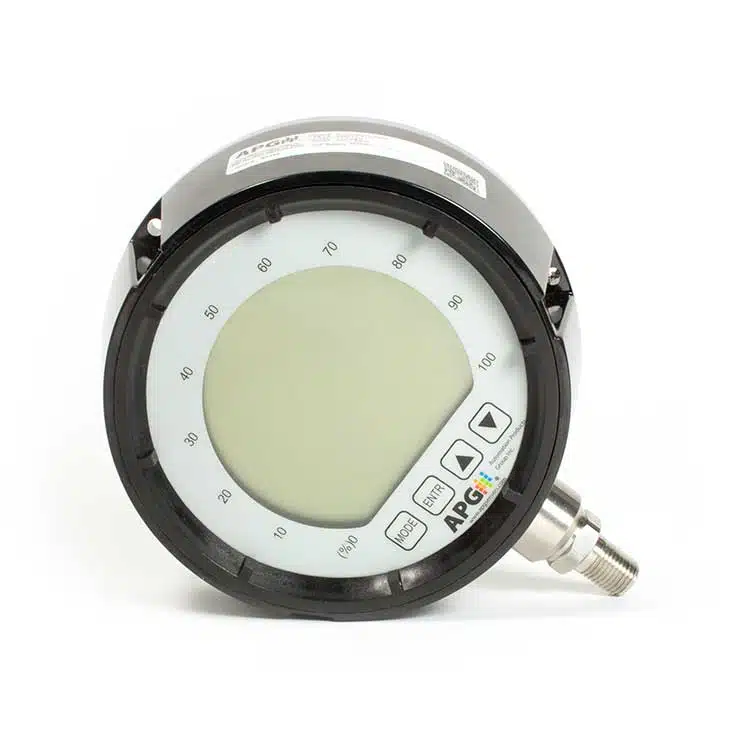

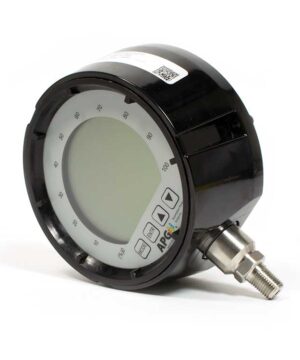

IP65 Digital Pressure Gauge with 5.5" Display

PG10

Large Display For Readability At-A-Glance

The PG10 is our additional feature gauge with a large, 5-digit display, 270° radial bar, and 60-point on-board data logging standard.

With a large display and a 270° radial bar graph, the Series PG10 IP65 Digital Pressure Gauge with 5.5" Display is our most full-featured gauge with the longest battery life.

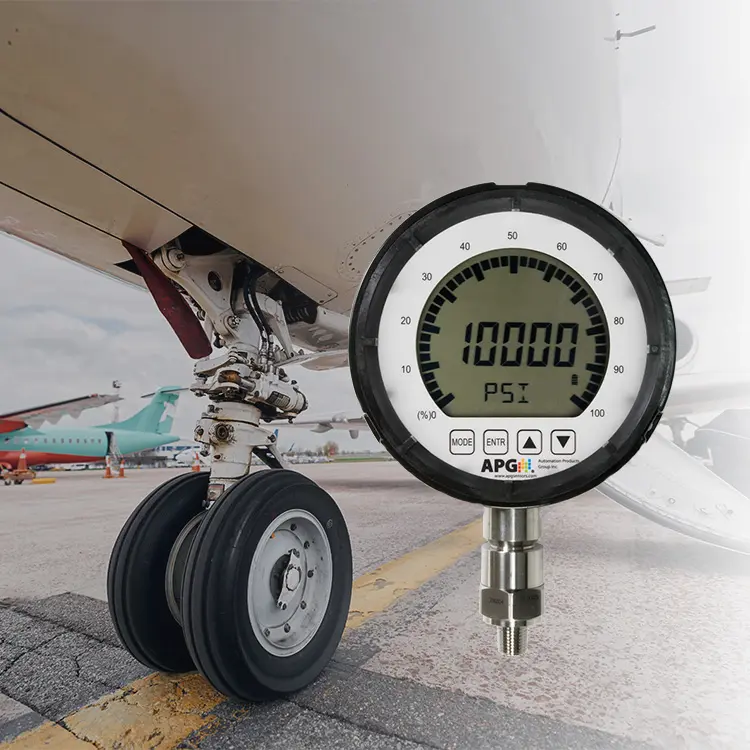

Readability

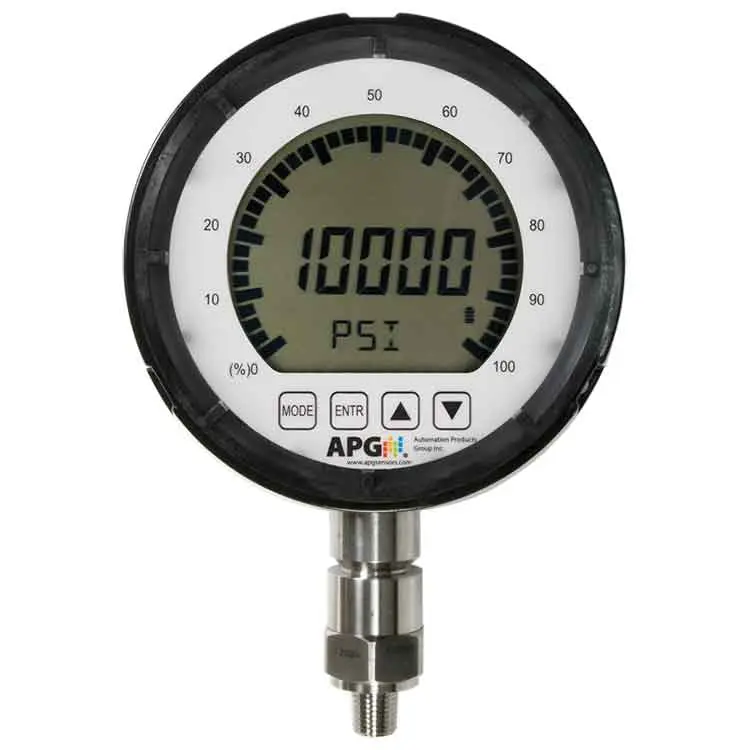

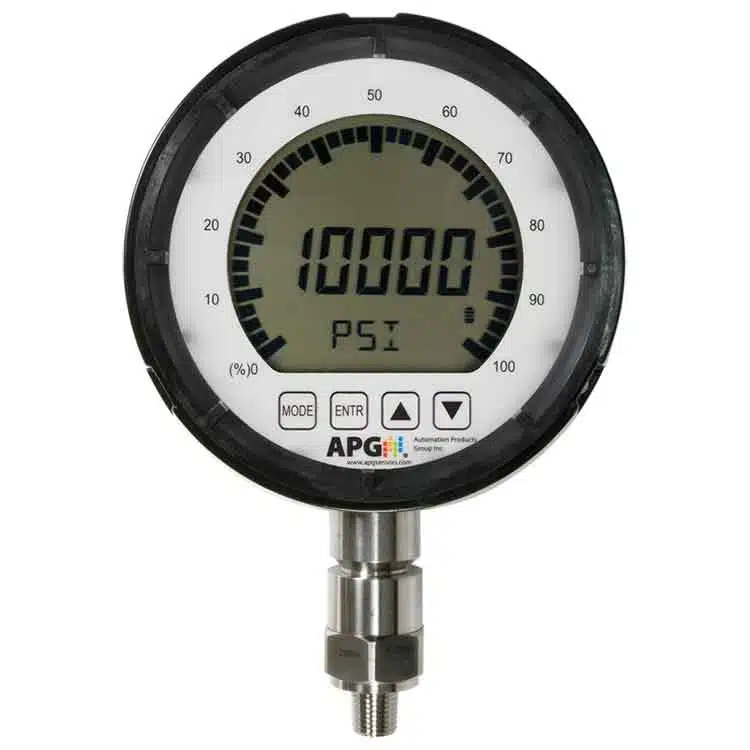

With a large, 5-digit display, 0.68 in. characters, and a 270° radial bar graph, the series PG10 pressure gauges give you true at-a-glance readability.

Feature Rich
Based on the PG gauge platform, series PG10s feature standard functions such as tare, peak hold, max-min, and selectable units of measure. In addition, you get on-board data logging, with optional RS-485 connection for remote access and data storage.

Digital Accuracy
Unlike cheap dial gauges, digital pressure gauges eliminate the guesswork with high accuracy and resolution for exact measurements you can trust.

CALIBRATION SERVICES

NIST Certificates and Re-Calibration

When purchasing your series PG10 IP65 digital pressure gauge, or any other pressure transmitter, ask for a NIST certificate for the standard 0.25% accuracy, or for 0.1% accuracy. We can also provide NIST certificates for your regular factory re-calibration.

Remember to have your pressure gauge sent in for a factory re-calibration to maintain reliable performance.

COMMON MODEL CONFIGURATIONS

All common model configurations can be purchased online, click the model number link below. Refer to Model Number Configurator on the datasheet for a full list of configuration options.

Model Number Model Description
PG10-15.00-PSIG-F0-L0-E0-C0-P0-N0 0-15 PSI, gauge pressure reference, 2 C batteries, no output, 1/4" NPTM bottom port
PG10-100.00-PSIG-F0-L0-E0-C0-P0-N0 0-100 PSI, gauge pressure reference, 2 C batteries, no output, 1/4" NPTM bottom port
PG10-200.0-PSIG-F0-L0-E0-C0-P0-N0 0-200 PSI, gauge pressure reference, 2 C batteries, no output, 1/4" NPTM bottom port
PG10-500.0-PSIG-F0-L0-E0-C0-P0-N0 0-500 PSI, gauge pressure reference, 2 C batteries, no output, 1/4" NPTM bottom port
PG10-5000-PSIS-F0-L0-E0-C0-P0-N0 0-5,000 PSI, sealed gauge pressure reference, 2 C batteries, no output, 1/4" NPTM bottom port
PG10-10000-PSIG-F0-L0-E0-C0-P0-N0 0-10,000 PSI, sealed gauge pressure reference, 2 C batteries, no output, 1/4" NPTM bottom port

DATASHEETS & DOWNLOADS

PG10 Datasheet

PG10 User Manual

Performance

Pressure Range
Up to 10,000 psi
Accuracy
± 0.25% of full scale
NIST up to ± 0.1% available in select ranges

Physical

Housing
Weather-resistant injected molding phenolic
Wetted-materials
316L SS

Electrical

External Power
9-28 VDC
Batteries
2 C alkaline batteries for 8,000 hours or 2 lithium batteries for 12,000 hours

Environmental

Operating Temperature
0 to 160° F
Enclosure Protection
IP65

Connectivity

Outputs
4-20mA, 0-2 VDC, 0-5 VDC
APG Modbus (RTU)/RS-485
Internet Connectivity
4-20mA with RST-5003
Modbus with RST-5003 or LOE

Setup Data Logging on the PG10 Digital Pressure Gauge | Pt. 1 Timestamp
Setup Data Logging on the PG10 Digital Pressure Gauge | Pt. 2 Continuous Logging & Sample Rate
Setup Data Logging on the PG10 Digital Pressure Gauge | Pt. 3 Event Based Logging
Setup Data Logging on the PG10 Digital Pressure Gauge | Pt. 4 Viewing & Clearing Logs

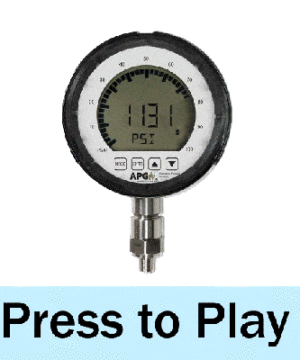

How to Set-up the Bar Graph on the PG10 Digital Pressure Gauge
