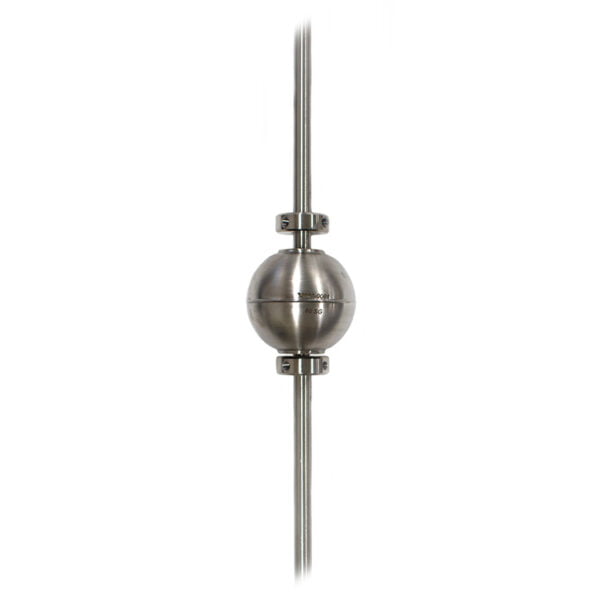

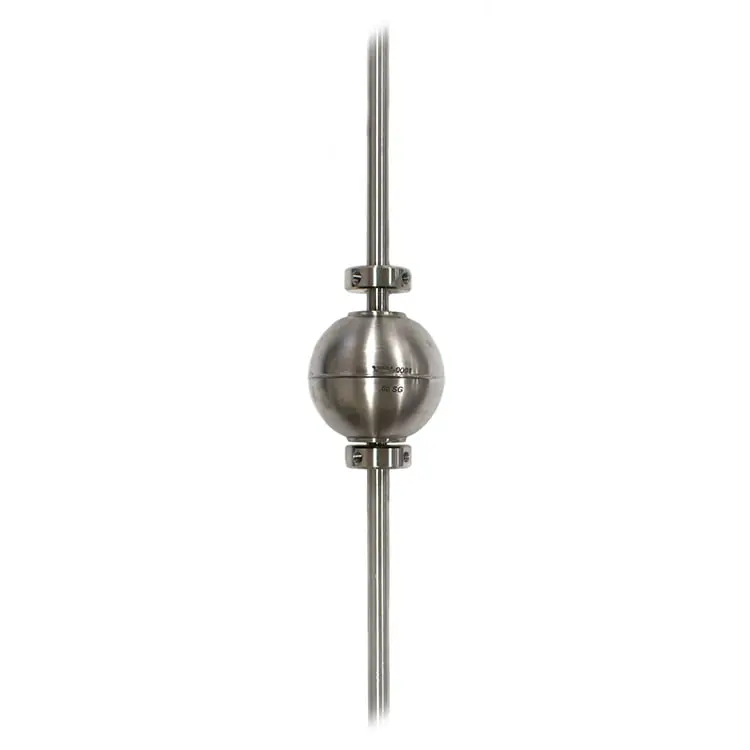

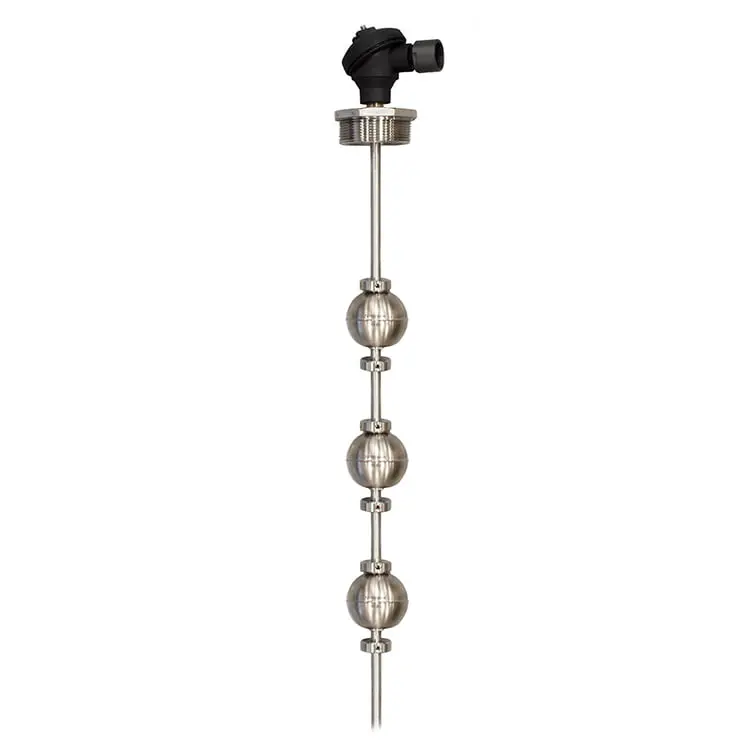

Stem Mounted Multi-Point Level Switch

FLE - FLR

Custom Built, Stem Mounted Float Switches

FL series multi-point level switches have up to seven switch points custom configured along a single mount for linear level measurement in tight spaces. Everything on these sensors is made-to-order from switch configurations to float types and materials.

It's hard to beat 7 switch points custom configured to your application from a single sensor.

Customizable
FL Series multi-point level switches come made-to-order. From switch configurations to float types and materials, each FLE and FLR switch is built to meet your specifications.

Works in Tight Spaces

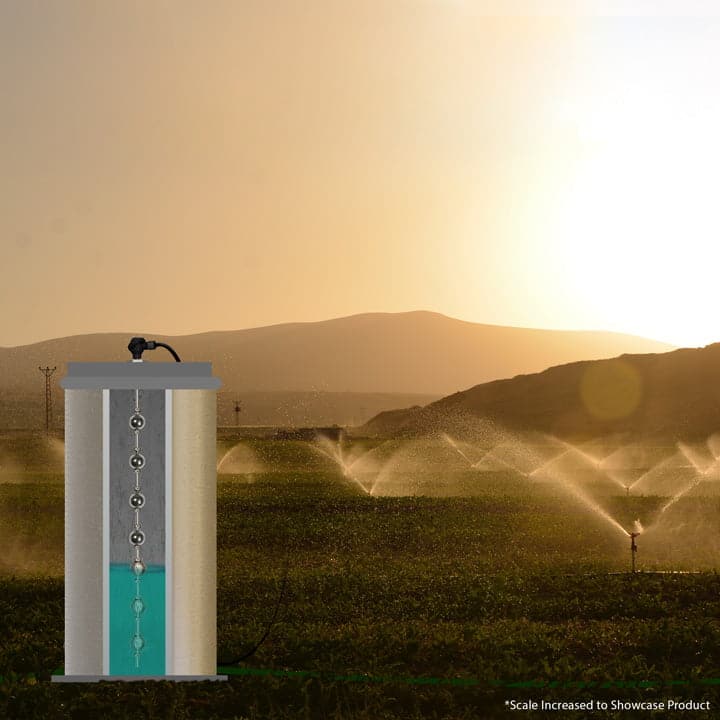

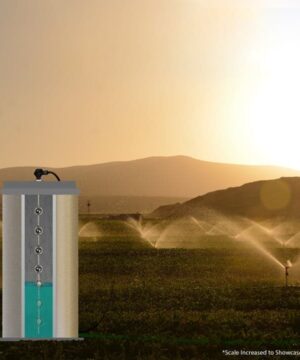

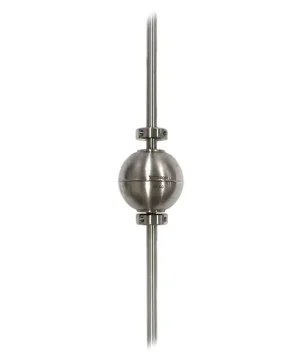

Unlike suspended float switches that require room to operate, this vertical float switch works along a probe, or stem, for linear level measurement in a tight space.

Up To Seven Switch Points
The FL Series level switch offers up to 7 switch points for increased control and savings. Monitor up to 3 different levels with a single FLE sensor, or up to 7 different levels with an FLR, all on one stem with a single mount.

Performance

Switch Points
Up to 7 NO/NC
Custom Configuration

Physical

Mount & Stem Materials
304 SS, 316L SS
Float Materials
304 SS, 316L SS, Buna
Max Length
153 in.

Electrical

Switch Rating
20 VA, 50 VA, 180 VA
Max Current
0.5 A AC
Max Voltage
220 VAC

Environmental

Operating Temperature
14 to 212° F

Approvals

Certifications
CSA General Purpose

Connectivity

Outputs
Resistive, NO, NC
