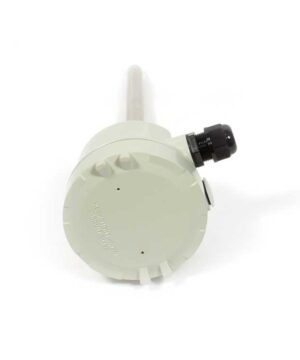

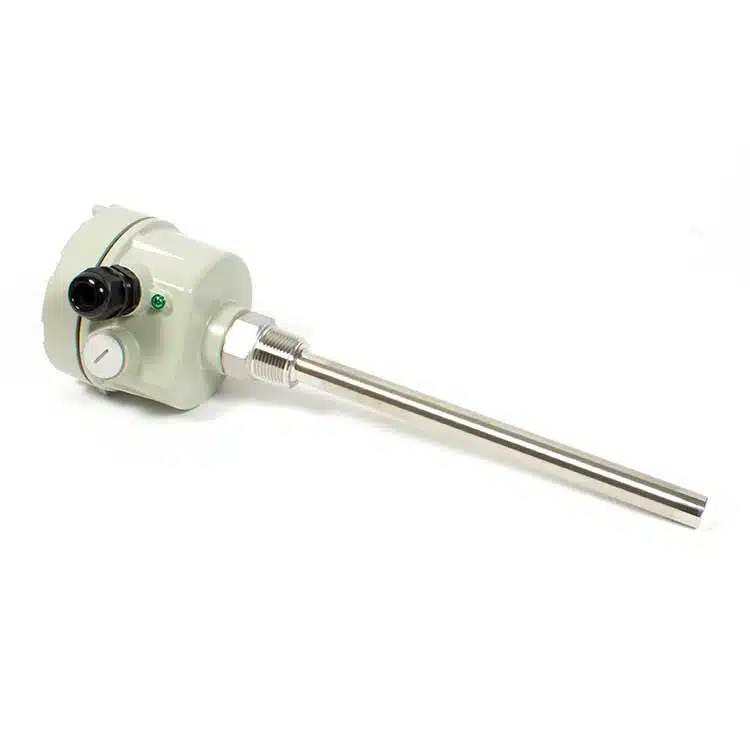

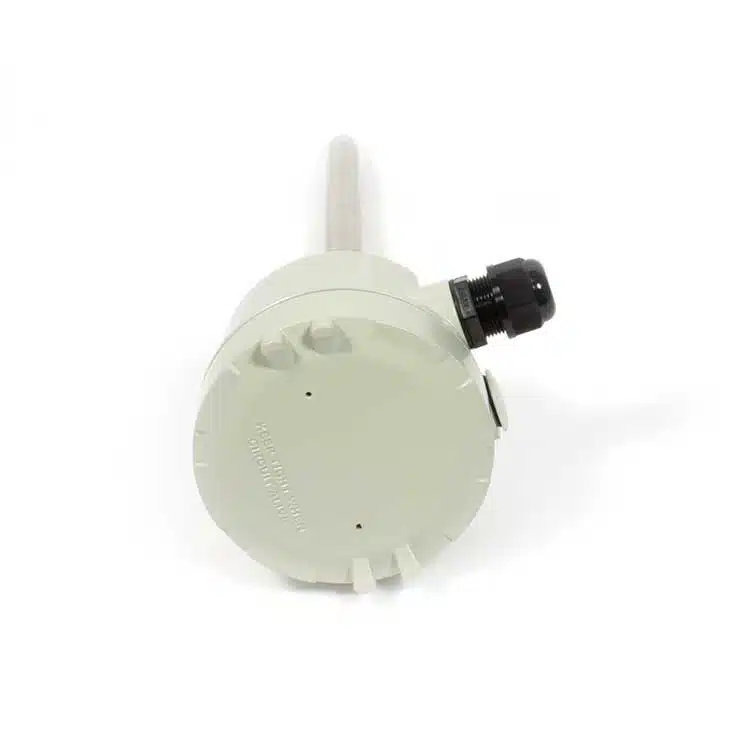

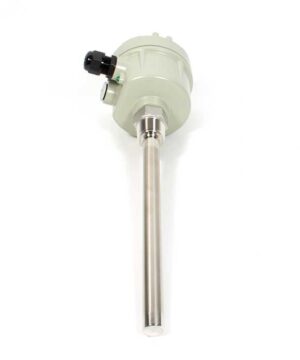

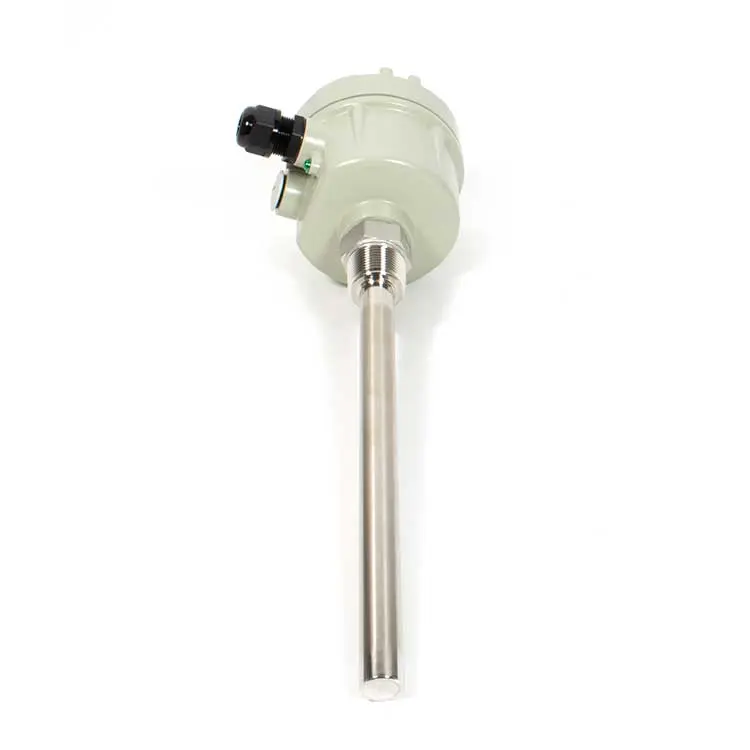

Vibrating Rod Level Switch

VBL

Field Adjustable Sensitivity

With several mounting options and field adjustable sensitivity settings, the VBL is perfect for a variety of solid level detection applications.

Versatile Solid Level Sensing

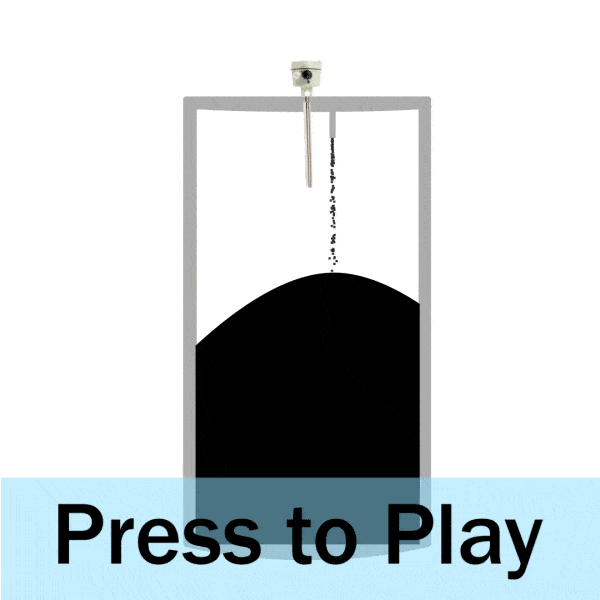

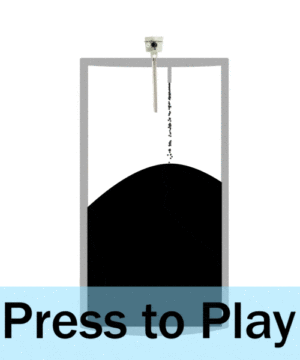

The VBL vibrating level switch works well with solids of many types and for silos and bins or many shapes and sizes.

Mounting Options

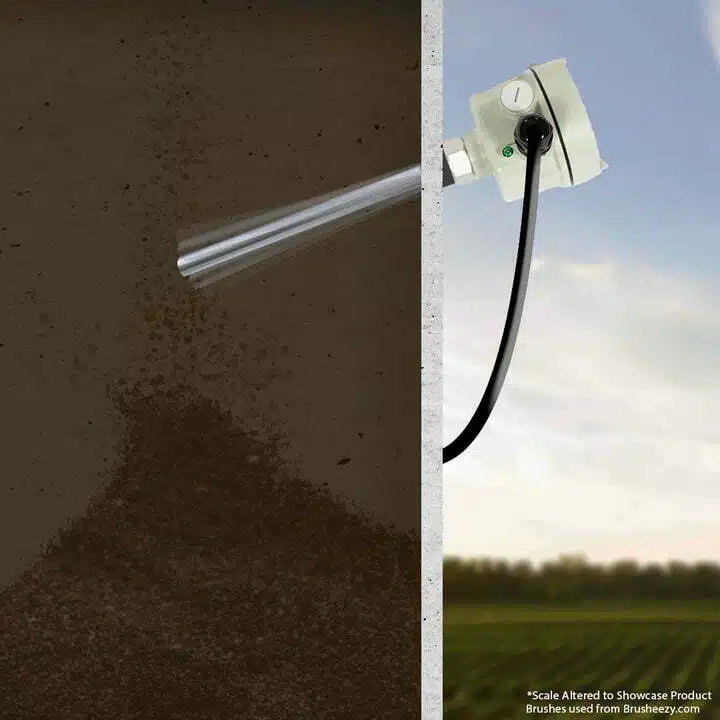

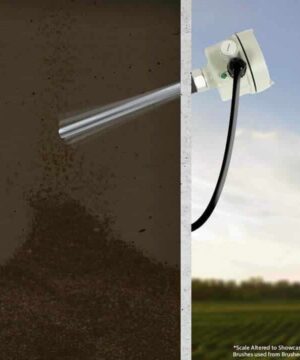

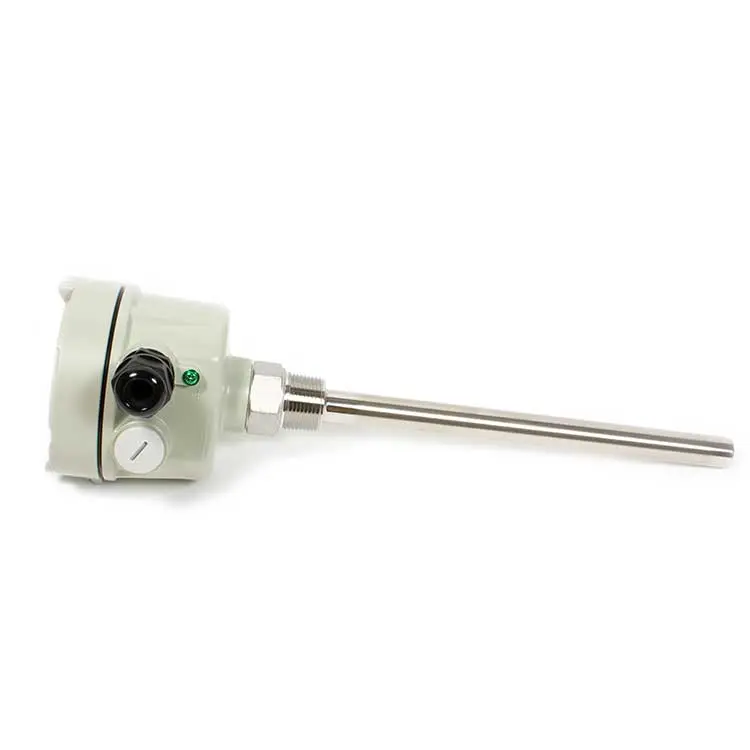

The VBL vibrating level switch can be mounted vertically or at 20 ° above horizontal.

Sensitivity Adjustments
The VBL vibrating level sensor allows you to adjust the sensitivity setting to accurately detect the presence of different types of solids. Sensitivity can be set on a dial from Low (large particles) to High (small particles).

DATASHEETS & DOWNLOADS

VBL Datasheet

VBL User Manual

Performance

Operation
1 SPDT

Physical

Housing
Aluminum Die Cast
Vibration Probe
304 / 316 SS
Length: 10.83" (275 mm)

Electrical

Supply Voltage
20 - 250 VAC/VDC, 50/60 Hz
Output Contact Rating
5A / 250 VAC
Power Consumption
≤ 15 VA

Environmental

Operating Temperature
Housing: -40° - 140° F (-40° - 60° C)
Rod: -40° - 176° F (-40° - 80° C)
Enclosure Protection
IP65
NEMA 4

Connectivity

Wiring
Terminal Block (cable not included)
